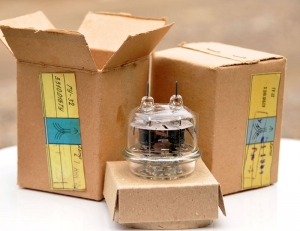

GU-32 / GU32 = 832 tube. Beam double tetrode NIB

Manufacturers: Ulyanovsk, Russia
In Stock: 199
Price:
$5.50
Add to cart:
Product description
Datasheets
Other Info

Description



The GU-32 (ГУ-32) beam-power double tetrode is used as an oscillator and RF power amplifier operating in the metric wavelength range in RF equipment. Indirectly heated oxide cathode.

All tubes new, military equipment and have "OTK" mark. Near equivalent: 832. The tube is manufactured by the Ulyanovsk, Russia.

General characteristics:
Name: GU32
Type: double beam tetrode
Cathode type: oxide,indirect heating
Application field: oscillation and amplification RF power in metric band
Brief application: oscillation, amplification
Envelope: glass
Cooling method: air
Dimensions: 88mmx52.5mm
Mass: 100 g
Filament voltage, V: 6,3 / 12,6
Filament current, A: 1,45 - 1,75 / 0.7 - 0.9
normal anode voltage, V: 250
Mutual conductance, mA/V: 3 to 4.8
Output power, W: 15
Maximum anode voltage, kV: 3.5
Maximum operating frequency, MHz: 200

All datasheets here.





Manufacturers: Ulyanovsk, Russia
