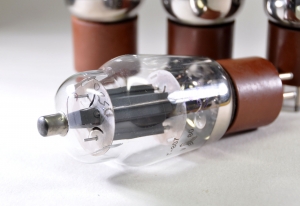

G-807 / G807 = 1625 = 5933 tube. Beam tetrode

Manufacturers: Ulyanovsk, Russia
In Stock: 0
Price:
$7.00
Out of stock
Product description
Datasheets
Other Info

Description



The G-807 (Г-807) beam tetrode designed to amplify and generate high-frequency oscillations. Used to the transmitter, as well as in cascades line scan television receivers. Can be used in terminal stages of low-frequency power. Indirectly heated oxide cathode.

All tubes new in box, military equipment and have "OTK" mark. Near equivalent: 1625 and 5933. The tube is manufactured by the Ulyanovsk, Russia.

General characteristics:
Name: G807 (G-807)
Type: beam tetrode
Cathode type: oxide,indirect heating
Application field: oscillation and power amplification up to 60MHz
Brief application: oscillation, amplification
Envelope: glass with base
Cooling method: air
Dimensions, mm: 146x53
Mass, g: 100
Filament voltage, V: 6,3
Filament current, A: 0,81 - 0,99
normal anode voltage, V: 600
Output power, W: 25
Maximum anode voltage, V: 600
Maximum operating frequency, MHz: 60

All datasheets here.





Manufacturers: Ulyanovsk, Russia
