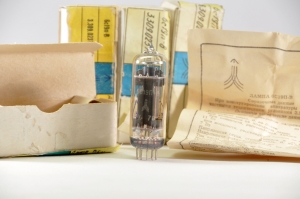

6S19P-V / 6C19P-B tube. Audiophile triode NIB

Manufacturers: Ulyanovsk, Russia
In Stock: 0
Price:
$2.10
Out of stock
Product description
Datasheets
Other Info

Description

The 6S19P-V (6С19П-В) tiode is designed for operation as a regulator tube in electronic voltage stabilizers.

The 6S19P-V triodes is are miniature devices enclosed in glass bulb and are provided with a nine-pin base and an indirectly heated oxide-coated cathode.

The 6S19P-V triodes are resistant to ambient temperature from -60 to +70°C and relative humidity of 95 to 98% at +40°C, as well as to mechanical loads: vibration loads up to 2.5g and multiple impact loads up to 12g.

All tubes new in box, military equipment and have "OTK" mark. Near equivalent: -- . The tube is manufactured by the Reflector, Saratov, Russia.

General characteristics:
Name: 6S19P-V (6S19P-B)
Filament voltage, Volt: 6.3
Anode voltage, Volt: 110
Grid voltage, Volt: -7
Resistance in cathode circuit, Ohm: 130
Filament (heater) current, A: 1±0.07
Anode current, mA: 95±15
Reverse grid current, mkA: 3
Dissipate cathode-heater current, mkA: 50
Mutual conductance, mA/V: 7.5±1.5
Internal resistance, Ohm: 420±100
Vibration noise (by RA=2 KOhm), mV: 200
Inter electrode capacitance, pF: input: 5.75±2.25
- output: 2.5±1.5
- transfer: 10
Operation time, h: over 5000

All datasheets here.





Manufacturers: Ulyanovsk, Russia
