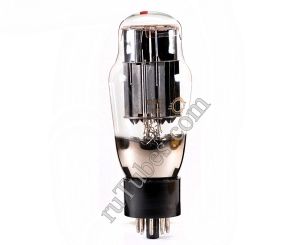

6N13S = 6AS7G = ECC230 tube. Double triode

Manufacturers: Svetlana, St. Peterburg, Russia
In Stock: 44
Price:
$8.00
Add to cart:
Product description
Datasheets
Other Info

Description



The 6N13S (6Н13С) double triode is designed for operation in electronic stabilizers.

The 6N13S double triodes are enclosed in glass bulb and are provided with an octal base and an indirectly heated oxide-coated cathode.

The 6N13S double triodes are ressistant to ambient temperature from -60 to +70C and relative humidity of 95 to 98% at +20C, as well as to mechanical loads: linear loads up to 15g, vibration loads up to 2.5g and impact loads up to 12g. Time life over 1000hr.

All tubes new, military equipment and have "OTK" mark. Near equivalent: 6AS7G and ECC230. Very good sound.

General characteristics:
Type: 6N13S
Filament voltage, Volt: 6.3
Anode voltage, Volt: 90
Grid voltage, Volt: -30
Filament (heater) current, A: 2.5±0.25
Anode current, mA: 80
Reverse grid current, mkA: 2
Dissipate cathode-heater current, mkA: 100
Mutual conductance, mA/V: 5.5
Interior resistance, Ohm: 460
Inter electrode capacitance, pF:
- input: 8
- output: 3
- transfer: 10
Operation time, h: over 1000

Limited operating values:
Filament voltage, V 5,7-6.9
Anode voltage, V 250
Cathode - heater voltage, V 300
Anode current, mA 130
Anode dissipation, W 13
Resistance in grid circuit, MOhm 1

Operating environmental conditions:
Acceleration of vibration loads, g 2,5
Acceleration of multiple impacts, g 12
Ambient temperature, °С -60 to +70
Relative humidity at up to 40°C, % 98

All datasheets here.





Manufacturers: Svetlana plant
