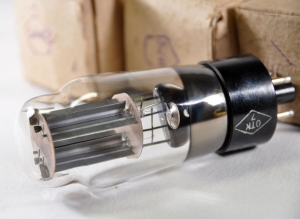

5C4S / 5U4S tube near 5Z4 = CV1863 = 5Z4GT. Old ver. glass Cobra

In Stock: 0
Price:
$4.75
Out of stock
Product description
Datasheets
Other Info

Description

It is commonly assumed that the Russian 5Ц4С (5U4S) rectifier is equal to the western 5Z4G, and its true! The only difference compared to a vintage Brimar is a slightly higher peak inverse voltage at 1400v in stead of 1350v for the 5Ц4С.

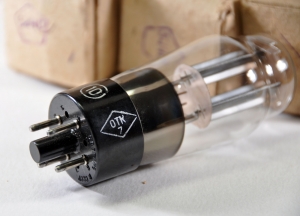

All tubes new, military equipment and have "OTK" mark. Near equivalent: 5Z4, CV1863 and 5Z4GT.

General characteristics:
Name: 5C4S
Heater voltage, V: 5
Variable effective stress of the secondary winding of the transformer, V: 2х500
Resistance in the anode circuit, Ohm : 4700
Capacitor filter, uF: 5
Heater current, A: 2
The rectified current, mA: 122
The rectified current when the heater voltage 4.5 V, mA: 100

Maximum characteristics:
Most heater voltage, V: 5.5
The smallest heater voltage, V: 4.5
The greatest amplitude of the reverse voltage of the anode, in: 1350
The highest average value of the rectified current, mA: 125
The greatest amplitude of anode current, mA: 375

All datasheets here.

Manufacturers: NEVZ, Novosibirsk, Russia
